What is a SoM?

A System on Module is a small plug on device that has a collection of integrated electronics, like a CPU and/or FPGA and is self-contained and only requires a power source to work. A SoM is typically integrated onto a carrier module with ‘Custom’ I/O to enable interface to Real-World signals.

The TE-Series of SoM are 40mm x 50 mm and offers various ARM + FPGA devices coupled with Ethernet PHYs, Memory and are using the Samtec Razor-Beam LSHM Hermaphroditic Terminal/Socket Strip to provide 260 I/O pins.

List of current modules:

SoM3-MPF300T

SoM3-MPF300T
System on Module (SoM), using Microsemi PolarFire MPF300T-1FCVG484 FPGA This is a small footprint System On Module (SoM) with 40x50mm dimensions. It has a low power, highly secure FPGA from the PolarFire family from Microsemi. It comes with 4GB of DDR4 memory, Ethernet PHY, and FLASH. This SoM is ideal for being used in complex...

Product Details...

TEO820-ZU4EV

TEO820-ZU4EV
  • Xilinx Zynq UltraScale+ XCZU4EV-1SFVC784E
  • 4 x 5 cm form factor
  • 2 x 512 MByte 32-Bit width DDR4 SDRAM
  • 2 x 32 MByte (2 x 256 MBit) SPI Boot Flash dual parallel
  • 4 GByte eMMC Memory (up to 64 GByte)

Product Details...

TEO820-ZU2CG

TEO820-ZU2CG
  • Xilinx Zynq UltraScale+ XCZU2CG-1SFVC784E
  • 4 x 5 cm form factor
  • 2 x 512 MByte 32-Bit width DDR4 SDRAM
  • 2 x 32 MByte (2 x 256 MBit) SPI Boot Flash dual parallel
  • 4 GByte eMMC Memory (up to 64 GByte)

Product Details...

TEO820-ZU3EG

TEO820-ZU3EG
  • Xilinx Zynq UltraScale+ XCZU3EG-1SFVC784E
  • 4 x 5 cm form factor
  • 2 x 512 MByte 32-Bit width DDR4 SDRAM
  • 2 x 32 MByte (2 x 256 MBit) SPI Boot Flash dual parallel
  • 4 GByte eMMC Memory (up to 64 GByte)

Product Details...

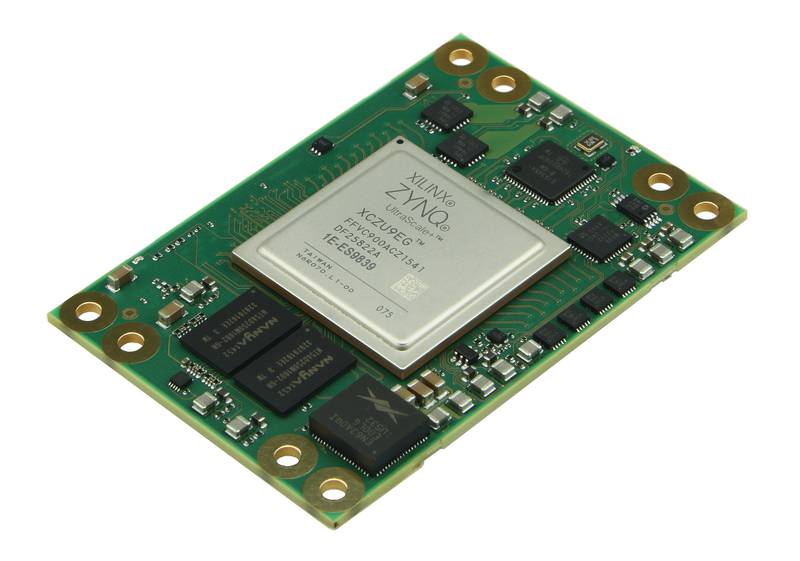

TE0808-ZU9

TE0808-ZU9
SoC: ZYNQ UltraScale+ ZU9EG 900 pin packages (ZU4EV, ZU5EV, ZU7EV, ZU6EG, ZU15EG)

Product Details...

TE0841

TE0841
  • Kintex UltraScale KU35 or KU40 in A784 Package
  • Memory - 2 x 16-Bit DDR4 - SPI Boot Flash - 256 MByte max.

Product Details...

TE0715-7030

TE0715-7030
  • Xilinx Zynq 7030 XC7Z030-1SBG485C
  • Rugged for shock and high vibration
  • ARM dual-core Cortex-A9 MPCore


Product Details...

TE0712

TE0712
  • Xilinx Artix-7 FPGA module (100T, 200T), supported by the free Xilinx Vivado WebPACK tool.
  • 256 Mbit (32 Mbyte) Quad-SPI Flash memory (for configuration and operation)
  • 4 MGTs (multi gigabit transceivers)


Product Details...

ZU2EG

ZU2EG
Xilinx Zynq Quad ARM + FPGA Module

Product Details...

TE0715-7015

TE0715-7015
  • Xilinx Zynq 7015 XC7Z015-1CLG485C
  • Rugged for shock and high vibration
  • ARM dual-core Cortex-A9 MPCore


Product Details...

TE0741

TE0741
  • Industrial-grade Xilinx Kintex-7 T FPGA module (70T*, 160T*, 325T, 410T) * Device supported by the free Xilinx ISE WebPACK tool.
  • 256 Mbit (32 Mbyte) Quad-SPI Flash memory (for configuration and operation) accessible through:
    • FPGA
    • JTAG port (SPI indirect)

Product Details...

TE0720

TE0720
  • Industrial-grade Xilinx Zynq SoC micromodule
  • Rugged for high shock and vibration
  • ARM dual-core Cortex-A9 MPCore @ up to 866 MHz


Product Details...

TE0711

TE0711
  • Industrial-grade Xilinx Artix-7 FPGA module (100T*)
  • 256 Mbit (32 Mbyte) Quad-SPI Flash memory (for configuration and operation) accessible through:
    • FPGA
    • JTAG port (SPI indirect)


Product Details...

TE0710

TE0710
  • Industrial-grade Xilinx Artix-7 FPGA module (100T*)
  • 256 Mbit (32 Mbyte) Quad-SPI Flash memory (for configuration and operation) accessible through:
    • FPGA
    • JTAG port (SPI indirect)
    • Gigabit Ethernet

Product Details...
