COTS PC/104 Carrier cards and boards.
PC104Z
PC104Z is based on the Xilinx Zynq UltraScale+ MPSoC family. This hardware is in PCIe104 form factor and adheres to its latest specification. It offers 4 Gen 2.0, x1 lane PCIe interfaces through a switch which allows 4 PCIe104 cards to be connected to the ARM on the Zynq which acts as the host. The board...
EMC2-ZU4CG
- PCIe/104 OneBank SBC w. Dual ARM V7 & 2Gbyte DDR4
- Xilinx Zynq SoC FPGA for I/O Interface and processing
- Integrated 1Gb Ethernet, combined w. USB2, SATA-2
- PCI Express Gen 2 compatible and integrate PCI Express switch
EMC2-SoM3-300
- PCIe/104 OneBank I/O board, via a Sundance 40mm x 50 mm SoM3
- PolarFire FPGA for I/O Interface and processing
EMC2-SoM3-200
- PCIe/104 OneBank I/O board, via a Sundance 40mm x 50 mm SoM3
- PolarFire FPGA for I/O Interface and processing
EMC2-SoM3-100
- PCIe/104 OneBank I/O board, via a Sundance 40mm x 50 mm SoM3
- PolarFire FPGA for I/O Interface and processing
SMT6657-KU35
- PC/104 OneBank™ plug-able module format
- Two Texas Instrument dual-core TMS320C6657 floating-point DSPs, running @ 1.24 GHz
- Xilinx Kintex-7 UltraScale KU35 series of FPGA w. 16x GTH transceivers
EMC2-ZU4EV
- PCIe/104 OneBank SBC w. Quad ARM53 & 1Gbyte DDR4
- Xilinx Zynq SoC FPGA for I/O Interface and processing
- Integrated 1Gb Ethernet, combined w. USB2, SATA-2
- PCI Express Gen 2 compatible and integrate PCI Express switch
EMC2-ZU3EG
- PCIe/104 OneBank SBC w. Quad ARM53 & 1Gbyte DDR4
- Xilinx Zynq SoC FPGA for I/O Interface and processing
- Integrated 1Gb Ethernet, combined w. USB2, SATA-2
- PCI Express Gen 2 compatible and integrate PCI Express switch
EMC2-ZU2CG
- PCIe/104 OneBank SBC w. Dual ARM53 & 1Gbyte DDR4
- Xilinx Zynq SoC FPGA for I/O Interface and processing
- Integrated 1Gb Ethernet, combined w. USB2, SATA-2
- PCI Express Gen 2 compatible and integrate PCI Express switch
EMC²-KU40
- PCIe/104 OneBank I/O Board with Xilinx Kintex UltraScale KU40 FPGA for I/O Interface and processing
- PCI Express Gen 2 compatible and integrate PCI Express switch
- Infinite number of EMC²-KUxx can be stacked for large I/O solutions
- Expandable with any VITA57.1 FMC I/O Module for more flexibility
EMC²-KU35
- PCIe/104 OneBank board with Kintex UltraScale FPGA for I/O Interface and processing
- PCI Express Gen 2 compatible and integrate PCI Express switch
- Infinite number of EMC²-KUxx can be stacked for large I/O solutions
- Expandable with any VITA57.1 FMC I/O Module for more flexibility
EMC²-7K410
- PCIe/104 OneBank I/O Board
- Xilinx Kintex-7 FPGA for I/O Interface and processing
- Expandable with any VITA57.1 FMC I/O Module for more flexibility
- PCI Express Gen 2 compatible and integrate PCI Express switch
- Infinite number of EMC²-7Kxxx 7030 can be stacked for large I/O solutions
EMC²-7K325
- PCIe/104 OneBank I/O Board
- Xilinx Kintex-7 7K325 FPGA for I/O Interface and processing
- Expandable with any VITA57.1 FMC I/O Module for more flexibility
- PCI Express Gen 2 compatible and integrate PCI Express switch
- Infinite number of EMC²-7Kxxx can be stacked for large I/O solutions

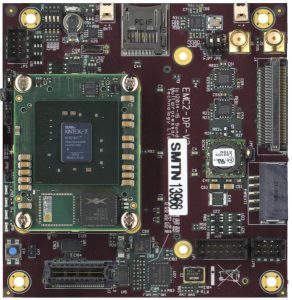

EMC²-7K160
- PCIe/104 OneBank I/O Board
- Xilinx Kintex-7 SoM for I/O Interface and processing
- Expandable with any VITA57.1 FMC I/O Module for more flexibility
- PCI Express Gen 2 compatible and integrate PCI Express switch
- Infinite number of EMC²-7Kxxx can be stacked for large I/O solutions
EMC²-7K70
- PCIe/104 OneBank I/O Board
- Xilinx Kintex-7 FPGA for I/O Interface and processing
- Expandable with any VITA57.1 FMC I/O Module for more flexibility
- PCI Express Gen 2 compatible and integrate PCI Express switch
- Infinite number of EMC²-7Kxxx can be stacked for large I/O solutions
EMC²-Z7030
- PCIe/104 OneBank SBC w. Dual 1GHz ARM9 & 1Gbyte DDR3
- Xilinx Zynq SoC with Kintex-7 FPGA for I/O Interface and processing
- Integrated 1Gb Ethernet, combined w. USB2, SATA-2
- PCI Express Gen 2 compatible and integrate PCI Express switch

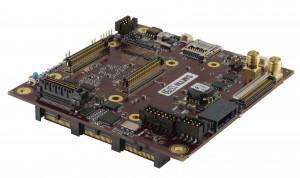

EMC²-SoM
- PCIe/104 OneBank Carrier for Trenz FPGA and SoC Modules
- PCI Express Gen 2 compatible and integrate PCI Express switch
- Infitive number of EMC²-SoM can be stacked for large I/O solutions
- Expandable with any VITA57.1 FMC I/O Module for more flexibility
EMC²-DP
- PCIe/104 OneBank Carrier for Trenz SoC Modules
- PCI Express Gen 2 compatible and integrate PCI Express switch
- Infitive number of EMC²-DP can be stacked for large I/O solutions
- Expandable with any VITA57.1 FMC I/O Module for more flexibility
EMC²-7A200
- PCIe/104 OneBank FPGA I/O Board
- XC7A200, Speed Grade -2 FPGA on a SoM Module
- 1Gbyte DDR3 and 32Mbytes of Flash Memory
- Xilinx Artix-7 FPGA for I/O Interface and processing
EMC²-7A100
- PCIe/104 OneBank FPGA I/O Board
- XC7A100, Speed Grade -2 FPGA on a SoM Module
- 1Gbyte DDR3 and 32Mbytes of Flash Memory
- Xilinx Artix-7 FPGA for I/O Interface and processing
SMT105-FMC
- Virtex-5 FXT FPGA (including integrated PowerPC™ cores)
- Virtex-5 SXT FPGA for FFT Processing Applications
- VITA57.1 FMC-LPC ™ Carrier
- 512Mbyte DDR2 memory.
EMC²-Z7015
- PCIe/104 OneBank SBC w. Dual 1GHz ARM9 & 1Gbyte DDR3
- Xilinx Zynq SoC with Artix-7 FPGA for I/O Interface and processing
- Integrated 1Gb Ethernet, combined w. USB2, SATA-2 and 1080p HDMI Output
