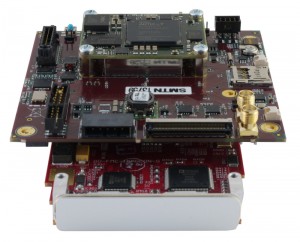

PC/104 OneBank I/O Board w. Artix-7 FPGA
The EMC2-7A200 can use commercial, industrial or automotive graded Artix-7 FPGAs and is complimented with 1Gbyte of DDR3 local storage, 32Mbytes of Flash memory for storage/configurations and has 68x free differential I/O pins which are routed to a VITA57.1 FMC-LPC high-speed connector for bespoke interfaces.
The four-lanes MGT (multi gigabit serial transceivers) are coupled to a PCI switch for infinite scalability, the FMC-LPC and a SATA connector on the PC/104 stack to connect to local storage or for direct high-speed connection to stacked EMC2 boards.
- PCIe/104 OneBank FPGA I/O Board
- XC7A200, Speed Grade -2 FPGA on a SoM Module
- 1Gbyte DDR3 and 32Mbytes of Flash Memory
- Xilinx Artix-7 FPGA for I/O Interface and processing
- Integrated 100Mb Ethernet
- PCI Express Gen 2 compatible and integrate PCI Express switch
- Infinitive number of EMC²-7A200’s can be stacked for large I/O solutions
- Expandable with any VITA57.1 FMC-LPC I/O Module for more flexibility
- 96mm x 90 mm PC/104 Form-Factor with Cable-less Break-Out PCB Connector
View a rotating EMC2 board
Download Design Specification
Download IO pin list
