EMC²-DP

PC/104 OneBank Carrier for SoC Modules


The EMC²-DP is a PCIe/104 OneBank™ Carrier for a Trenz compatible SoC Module and has expansion for a VITA57.1 FMC™ LPC I/O board  and also has I/O pins, using a 100-way Samtec RazorBeam connectors system. The add-on board, called “Sundance External Interface Connector – SEIC”  contains LEDs, RS232, USB2.0, HDMI, 1Gb Ethernet and SATA . The “SEIC” can be customize for individual applications and bespoke connectors.

The PCIe/104 OneBank™ design enables the EMC²-DP to be added to robust and rugged installations for various commercial, medial, industrial and military uses.

  • PCIe/104 OneBank Carrier for Trenz SoC Modules
  • PCI Express Gen 2 compatible and integrate PCI Express switch
  • Infinite number of EMC²-DP can be stacked for large I/O solutions
  • Expandable with any VITA57.1 FMC I/O Module for more flexibility
  • 96mm x 90 mm PC/104 Form-Factor with Cable-less Break-Out PCB Connector



3D Model EMC² board. (Must be opened in Acrobat Reader)

View a rotating EMC2 board

Sundance Software for the EMC²-DP

Sundance Firmware for the EMC²-DP

EMC2-DP Block Diagram

Design Specification

IO pin list

EMC2 STEP File

Description of the individual components on EMC2-DP

Description of the individual components on EMC2-DP Top

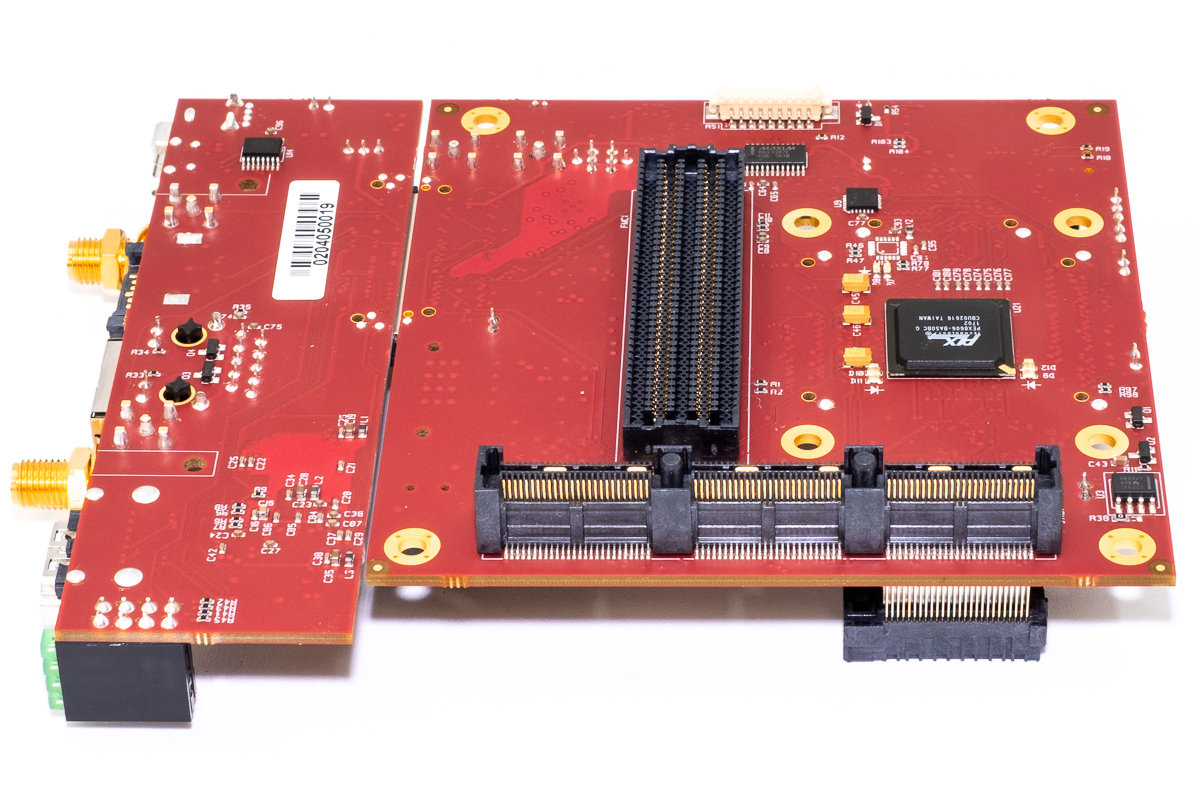

Description of individual components on EMC2-DP Bottom

Description of individual components on EMC2-DP Bottom
