Xilinx Artix-7 FPGA SoM

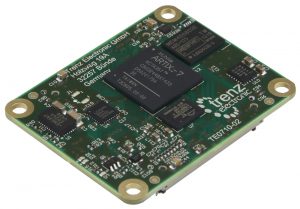

TE0710s are industrial-grade FPGA modules integrating a Xilinx Artix-7 T FPGA, a gigabit Ethernet transceiver (physical layer), 1 Gbit (128 Mbyte) DDR3 SDRAM with 8-bit width, 32 Mbyte Flash memory for configuration and operation, and powerful switch-mode power supplies for all onboard voltages. A large number of configurable I/Os is provided via rugged high-speed stacking strips. All modules in 5 x 4 cm form factor are fully mechanically and largely electrically compatible among them. All this on a tiny footprint, smaller than a credit card, at the most competitive price. A free and open embedded development suite with reference designs is included.

Key Features

  • Industrial-grade Xilinx Artix-7 FPGA module (100T*)
  • 8-bit wide 1 Gbit DDR3 SDRAM
  • 256 Mbit (32 Mbyte) Quad-SPI Flash memory (for configuration and operation) accessible through:
    • FPGA
    • JTAG port (SPI indirect)
    • Gigabit Ethernet
  • Gigabit Ethernet transceiver (PHY)
  • Micro-USB 2.0 (Hi-Speed) device port (for configuration and operation)
  • FPGA configuration through:
    • JTAG (B2B connector, USB port)
    • SPI Flash memory
  • 125 MHz reference clock signal
  • On-board high-efficiency DC-DC converters
  • Plug-on module with two 100-pin hermaphroditic stacking strips
  • Up to 129 single-ended FPGA I/O pins available on B2B strips
  • 1 user LED
  • Only 5 x 4 cm!
  • AES bit-stream encryption
  • Evenly spread supply pins for good signal integrity
  • Assembly options for cost or performance optimization available on request
