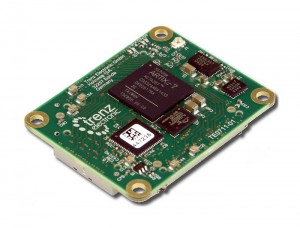

Xilinx Artix-7 FPGA SoMTE0711-01_46

TE0711sĀ are industrial-grade FPGA modules integrating a Xilinx Artix-7 T FPGA, 32 Mbyte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large

number of configurable I/Os is provided via rugged high-speed stacking strips. All modules in 5 x 4 cm form factor are fully mechanically and largely electrically compatible among them. All this on a tiny footprint, smaller than a credit card, at the most competitive price. A free and open embedded development suite with reference designs is included.

Key Features

  • Industrial-grade Xilinx Artix-7 FPGA module (100T*)
  • 256 Mbit (32 Mbyte) Quad-SPI Flash memory (for configuration and operation) accessible through:
    • FPGA
    • JTAG port (SPI indirect)
  • FPGA configuration through:
    • JTAG (B2B connector, USB port)
    • SPI Flash memory
  • Crystal oscillator
  • On-board high-efficiency DC-DC converters
  • Plug-on module with two 100-pin and one 60-pin high-speed hermaphroditic stacking strips
  • 181 single-ended FPGA I/O pins available on three B2B strips
  • 1 user LED
  • MicroSD slot
  • Only 5 x 4 cm!
  • AES bit-stream encryption
  • Evenly spread supply pins for good signal integrity
  • Assembly options for cost or performance optimization available on request
