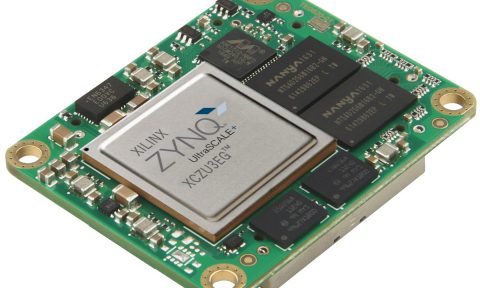

TEO820-ZU3EG
- Xilinx Zynq UltraScale+ XCZU3EG-1SFVC784E
- 4 x 5 cm form factor
- 2 x 512 MByte 32-Bit width DDR4 SDRAM
- 2 x 32 MByte (2 x 256 MBit) SPI Boot Flash dual parallel
- 4 GByte eMMC Memory (up to 64 GByte)
Category Archives: COTS Modules

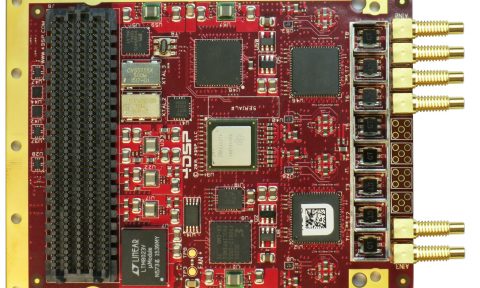

FMC123
- 2-Channels 16-bit 1.00 Gsps A/D
- 1.5Ghz Analog Bandwidth
- Usable in the 3rd Nyquist Zone
- VITA 57.1 HPC compliant
- Mil-I-46058c Conformal Coating Complaint (optional)

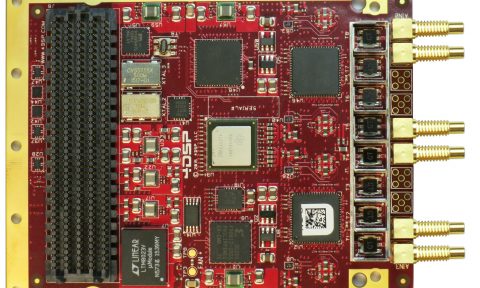

FMC121
- 2-Channels 16-bit 1.0 Gsps A/D
- 1.5Ghz Analog Bandwidth
- Usable in the 3rd Nyquist Zone
- 2-Channels 16-bit 1.4 Gsps D/A
- 2.8 GSPS Update Rate
- Onboard 48-bit NCO for flexible Signal Placement
- Mil-I-46058c Conformal Coating Complaint (optional)

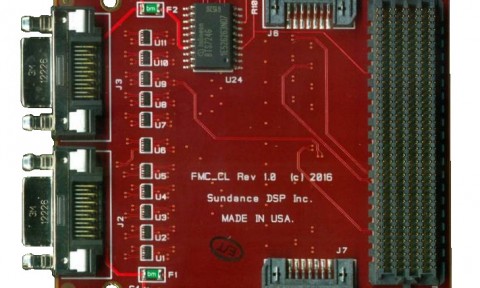

FMC-CL
- Dual CameraLink Ports
- Single SATA-3 Port
- Low-pin-count VITA57.1 FMC compatible
- PoCL (Power over Camera Link) support
- Up to 85 MHz data rate

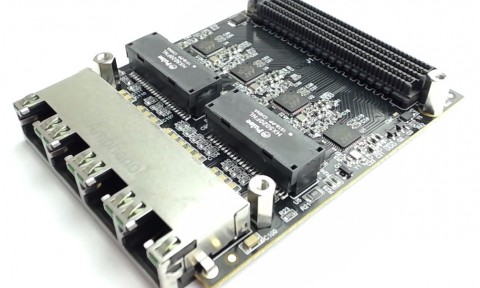

Robust Ethernet FMC
- 4 x 10/100/1000Mbps Ethernet Ports
- LPC FMC: Pin compatible with FMC carriers
- 125MHz Oscillator for the MAC
- Weight 450 grams

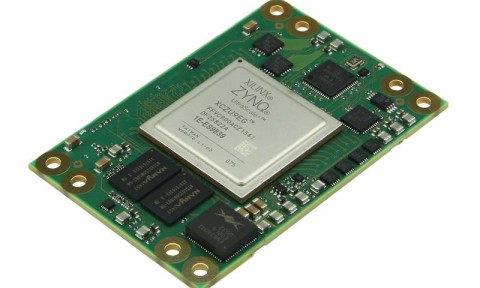

TE0808-ZU9
SoC: ZYNQ UltraScale+ ZU9EG 900 pin packages (ZU4EV, ZU5EV, ZU7EV, ZU6EG, ZU15EG)

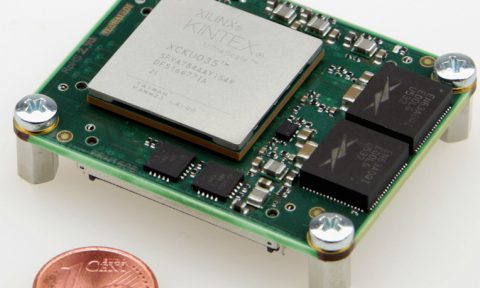

TE0841
- Kintex UltraScale KU35 or KU40 in A784 Package
- Memory
– 2 x 16-Bit DDR4
– SPI Boot Flash – 256 MByte max.

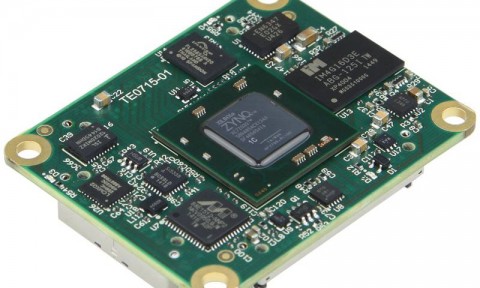

TE0715-7030
- Xilinx Zynq 7030 XC7Z030-1SBG485C
- Rugged for shock and high vibration
- ARM dual-core Cortex-A9 MPCore

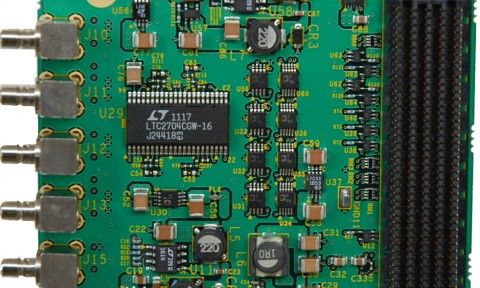

DACNF04 – HPC
- 4-ch of 16-bit DAC
- Impedance 50-ohm single-end
- DC coupling
- Output level 0 to +5V, +/-5V, 0 to +10V or +/-10V

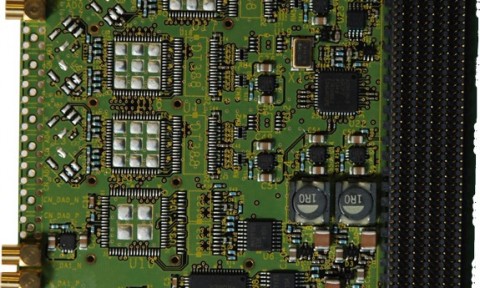

DACNF01- HPC
- Single channel of 16-bit DAC @ 500MHz
- Impedance 50-ohm differential
- DC coupling
- Output level 1Vpp (0V to 1V)
