1 channel DAC FMC module – High-Pin-CountRFM_DACNF01-P500MH

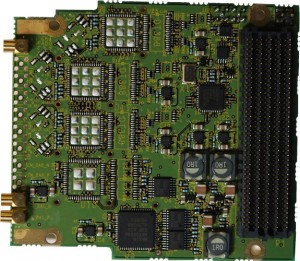

The RFM-DACNF01 is a five channel Digital to Analog converter FMC which complies with VITA 57.1-2010. The channel provides 16-bit single-ended input and one DC coupled differential analog output with 1 – 500MHz sampling speed based on Maxim MAX5888A. A single-ended external input or output clock is provided. The direction of the clock is programmable from the FPGA of the FMC carrier board.

Output Specification

  • Single channel of 16-bit DAC @ 500MHz
  • Impedance 50-ohm differential
  • DC coupling
  • Output level 1Vpp (0V to 1V)
  • External clock: DC coupled TTL(3.3V) level

To download the Reference Manual for this board please click here.

Block Diagram
