Category Archives: COTS Modules

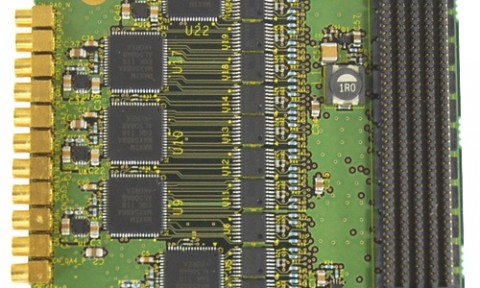

DACNF05 – HPC

• 5-channels of 16-bit DAC @ 500MHz
• impedance 50-ohm differential
• DC coupling
• output level 1Vpp (0V to 1V)

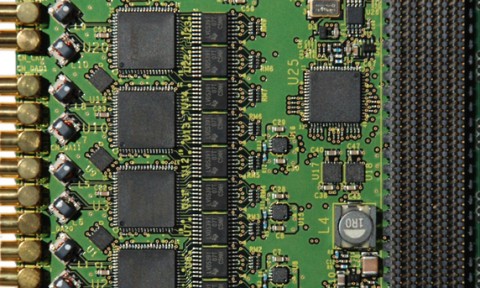

DACNF08 – HPC

The RFM-DACNF08 is a eight channel Digital to Analog converter FMC which complies with VITA 57.1-2010.

It uses 4x AD9122 DAC chips, with a sampling speed of up to 1.2GHz

ADCFN04 – HPC

• 4-channels of 16-bit ADC to 250KHz
• impedance 50-ohm single-ended
• S/N 97dB or over
• DC coupling 10Vpp(+/-5V)
• External trigger: impedance 50-ohm

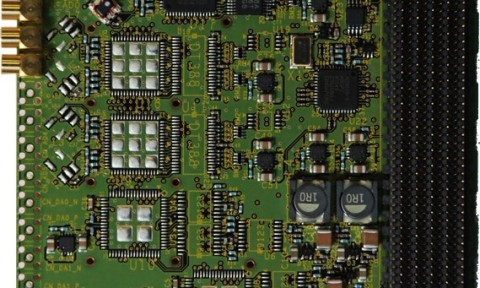

ADCFN02 – HPC

• Two channels of  16-bit ADC @ 105MHz
• Impedance 50-ohm single-ended
• Cross Talk 100dB@10MHz, 80dB@30MHz
• S/N 82dB or over
• LPF 400KHz-30MHz@-3dB

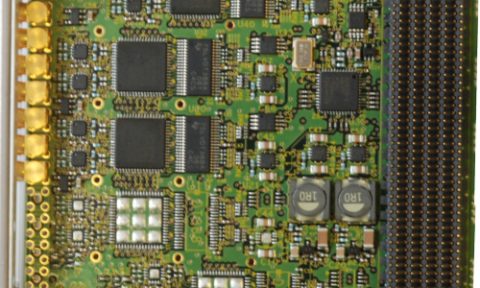

ADCFN06 – HPC

• 6-channels of ADC 16-bit @ 25MHz
• Impedance 3K-ohm single-ended
• DC coupling -7 to +7 V

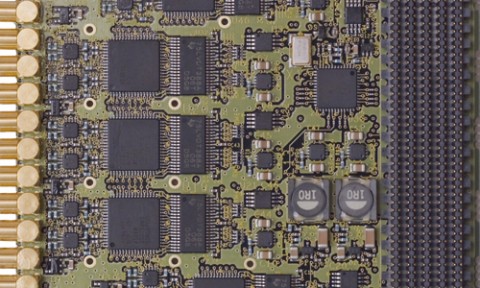

ADCFN10-DC – HPC

• 10-channels of 16-bit ADC @ 150MHz
• Impedance 50-ohm single-ended
• Cross Talk 100dB@10MHz, 80dB@30MHz
• S/N 82dB or over
• LPF 400KHz-30MHz@-3dB

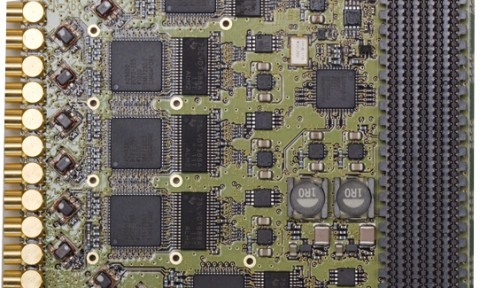

ADCFN10-AC – HPC

• 10-channels of 16-bit ADC @ 105MHz
• Impedance 50-ohm single-ended
• Cross Talk 100dB@10MHz, 80dB@30MHz
• S/N 82dB or over
• LPF 400KHz-30MHz@-3dB

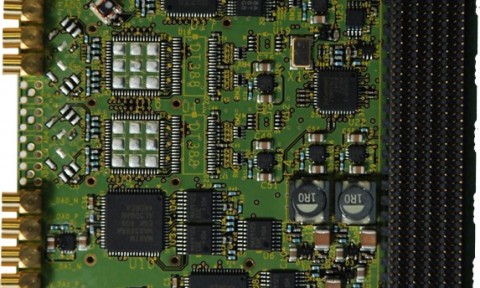

RFM-ADAFF22

• 2-ch
• impedance 50-ohm single-ended
• Cross Talk 100dB@10MHz, 80dB@30MHz
• S/N 82dB or over
• LPF 400KHz-30MHz@-3dB

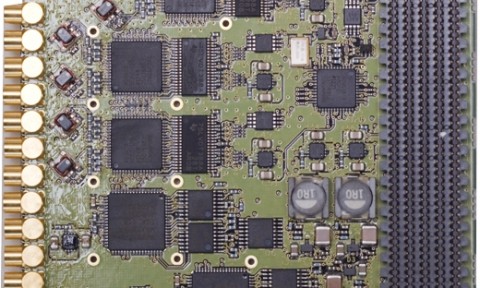

RFM-ADAFF62

• 6-ch
• impedance 50-ohm single-ended
• Cross Talk 100dB@10MHz, 80dB@30MHz
• S/N 82dB or over
• LPF 400KHz-30MHz@-3dB
