RFM_ADCFN10-A105MH10 channel ADC FMC module – High-Pin-Count

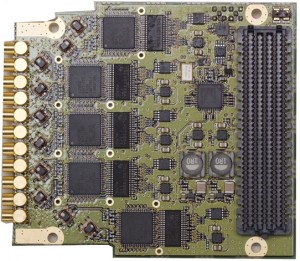

The RFM-ADCFN10 is a ten channel Analog to Digital converter FMC which complies with VITA 57.1-2010. Each channel provides single-ended analog input and 16-bit single-ended output with 20-105MHz sampling speed based on ADI AD9650. Both AC and DC coupled input are supported. Single-ended external clock, differential external clock or an internal clock from the FMC carrier board can be selected at the FMC for the AD converter through fine clock generator ADI AD9518-3.

 Input specification

  • 10-channels of 16-bit ADC @ 105MHz
  • Impedance 50-ohm single-ended
  • Cross Talk 100dB@10MHz, 80dB@30MHz
  • S/N 82dB or over
  • LPF 400KHz-30MHz@-3dB
  • AC coupling 1.0Vpp
  • External clock: impedance 50-ohm, AC coupling, max 2.5Vpp
