pi827 – PXIe card – 1 ch. ADC & 2 ch. DAC – Fast

The pi827 is a COTS integration combining the flexibility of a Kintex-7 FPGA PXIe card (PXIe/700) and a 12bit 2.7GSPS ADC with 16-bit dual channel 2.8GSPS DAC (DAQ2P5)



  • 3U PXIe card conforming to PXI-Express standard
  • Kintex7 FPGA
    • XC7K325T-1FFG900C or
    • XC7K410T-1FFG900C
  • Interfaces
    • PXI control, trigger and clock
    • 4 Lane PCIe Gen2 (Gen3 with softcore)
    • SFP+ for 10Gb Ethernet
    • Fiber Optics
    • External clock input
    • 8 GPIO, could be used for Reset in/out
  • Memory
    • 2 banks of DDR3 memory, 1GB each, 32-bit wide
    • 128 MB FLASH
  • ADC/DAC performance
    • ADC12J2700 – Single channel 12bit ADC @ 2.7GSPS.
    • LM95233 for ADC temperature monitoring.
    • AD9136 – 16-bit dual channels  DAC @2.8GSPS
    • 3x input connectors type SSMC:
      • One for single ended input of ADC signal, up to 2.7GHz.
      • One connector for trigger input(logic level).
      • One for clock input(can be used as Device clock for ADC and DAC, and can be used as reference clock for ADC and DAC)
    • 2x output connectors for DAC output, type SSMC.
    • 2x Tx and Rx High speed lanes available on additional Molex nano-pitch connector.
    • 2x Additional LVDS lines from FMC connector available via Molex nano-pitch connector.
    • 2x Clock signals and Vadj power supply available on Molex nano-pitch connector.

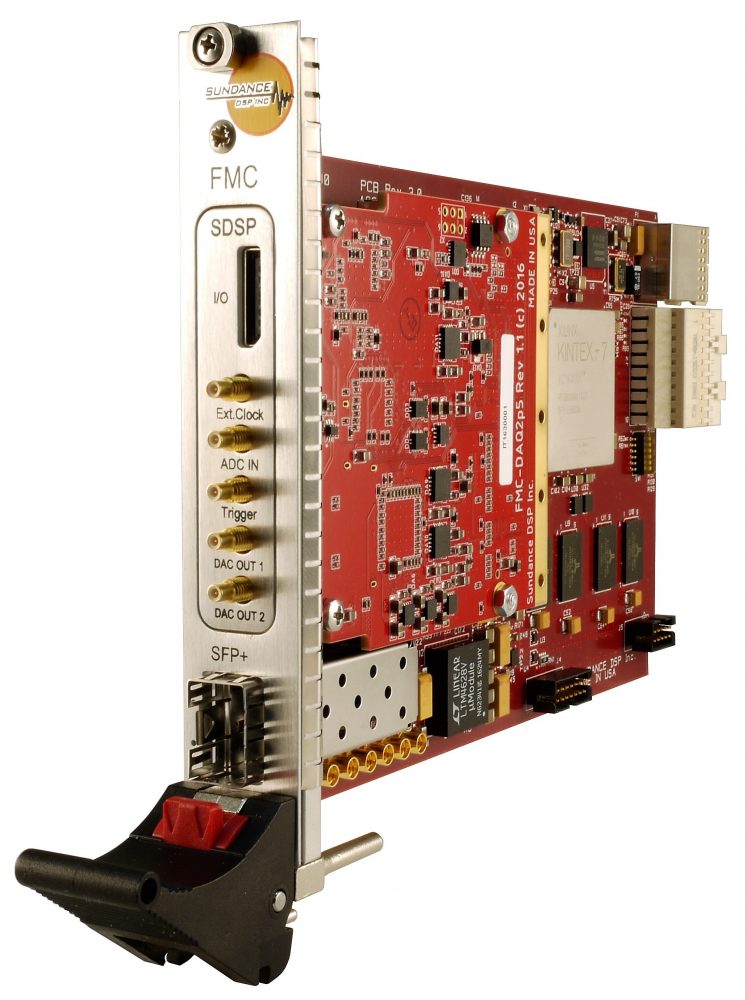

Click for full size image.
