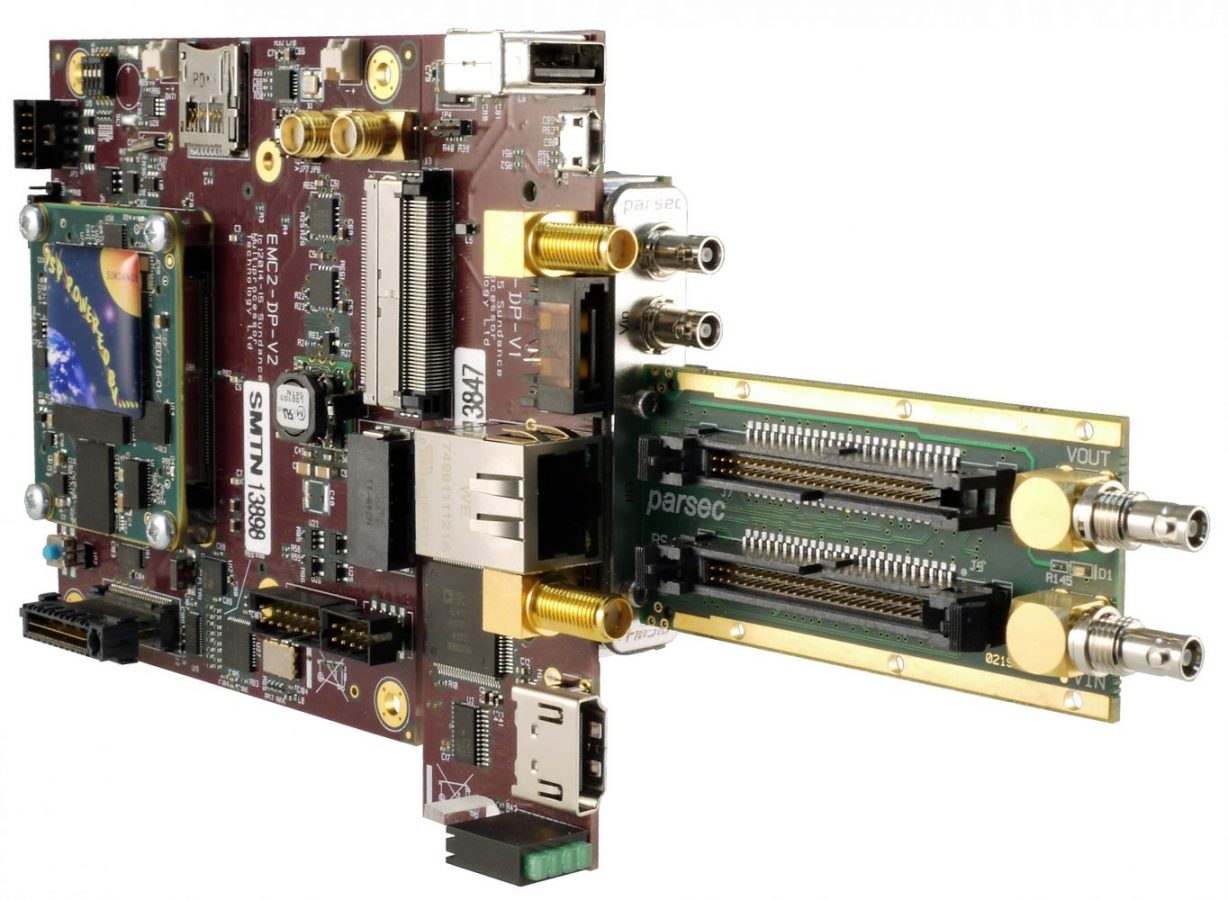

oi111 – Dual SDI + Analog Video

oi111 is a combination of a dual SDI and Analog video card (FM510) and the EMC²-DP integrated on a PC/104 form-factor.

Key points of the FMC module:

  • SDI Video input & output (75 Ω)
  • Composite (CVBS) Video input & output (75 Ω)
  • 10 x full-duplex RS422 interfaces
  • 4 x half-duplex RS485 interfaces
  • 4 x half-duplex CAN interfaces
  • 4 x isolated digital outputs (external 5-30V)
  • 4 x isolated digital inputs (12-30V)
  • 2 x stereo Audio inputs and outputs (600 Ω)

Key points of the carrier:

  • PCIe/104 OneBank or Type 1 or Type 2 compatible
  • PCI Express Gen 2 compatible and integrate PCI Express switch
  • Infinitive number of oi111’s can be stacked for multiple camera inputs
  • Expandable with any PCIe/104  I/O Module for more flexibility
  • Can be a “Single-Board-Computer” and run stand-alone or part of a system
  • 96mm x 90 mm PC/104 Form-Factor with Cable-less Break-Out PCB Connector

The oi111 needs to be coupled with the FPGA module of your choice.  Depending on the application you are designing for, we have a range of Xilinx Artix, Kintex and Kintex UltraScale FPGAs or Zynq SoC to suit. They are all based on the Trenz 5×4 System on Module standard for ultimate flexibility. For more information on these modules, please see our range here: SoM Range.
