RF FMC Modules

RF FMC Modules:

FMC L-Band RF Receiver

FMC L-Band RF Receiver
  •  LPC FMC connector, compliant with VITA 57.1 FMC standard
  •  MAX2121B RF Tuner (925 – 2,250 MHz) to ZF
  •  Programmable baseband bandwidth from 40 MHz to 100 MHz
  •  Dual-channel 12-bit ADC, 250 Msps


Product Details...

FMC-ZU1RF-A

FMC-ZU1RF-A
  • VITA 57.1 Specifications compliant
  • Single Module Width 69mm, Depth 76.5mm
  • Fully Hardware compatible with ADRV9371 Evaluation Board from ADI
  • 4x MGT DP[3:0]_M2C, 4x MGT DP[3:0]_C2M for JESD204B interfaces up to 6Gbps
  • 2x MGTCLK[1:0]_M2C
  • LA Bus for LVDS and Single-Ended signals
  • VADJ = 2.5V to 1.5V

Product Details...

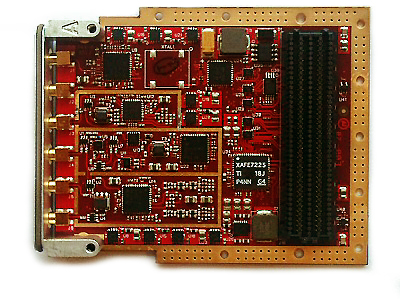

FMC30RF

FMC30RF
  • Conduction cooled compatible
  • ANSI/VITA 57.1-2010 compliant
  • RF coverage from 400Mhz to 3.0GHz*
  • Time Domain Duplex (TDD) and Frequency Domain Duplex (FDD) compatible

Product Details...

SDR400

SDR400
  • 2 RF Channels, DC to 6 GHz acquisition
  • Software tunable Channel Bandwidth 200 kHz-56 MHz
  • 2 x Multiple Synchronized Input and output
  • AD9361 Dual 12 bits transceivers
  • Tunable RF Bandpass Filters
  • AD9656 Dual 16 bits AD converter (for baseband RF)

Product Details...
