ADC FMC Modules

Analog to Digital FMC modules:

ADC500-5

ADC500-5
  • 5 x ADC 16 bit @ 500MS/s
  • High Pin Count ( HPC ) FMC module
  • Trigger Input
  • External Clock up to 4 GHz
  • 100 MHz onboard VCXO and 10MHz TCXO for reference clock

Product Details...

ADCFN02 – HPC

ADCFN02 – HPC
  • Two channels of  16-bit ADC @ 105MHz
  • Impedance 50-ohm single-ended
  • Cross Talk 100dB@10MHz, 80dB@30MHz
  • S/N 82dB or over
  • LPF 400KHz-30MHz@-3dB

Product Details...

ADCFN04 – HPC

ADCFN04 – HPC
  • 4-channels of 16-bit ADC to 250KHz
  • impedance 50-ohm single-ended
  • S/N 97dB or over
  • DC coupling 10Vpp(+/-5V)
  • External trigger: impedance 50-ohm

Product Details...

ADCFN06 – HPC

ADCFN06 – HPC
  • 6-channels of ADC 16-bit @ 25MHz
  • Impedance 3K-ohm single-ended
  • DC coupling -7 to +7 V

Product Details...

ADCFN10 – HPC

ADCFN10 – HPC
  • 10-channels of 16-bit ADC @ 105MHz
  • Impedance 50-ohm single-ended
  • Cross Talk 100dB@10MHz, 80dB@30MHz
  • S/N 82dB or over
  • LPF 400KHz-30MHz@-3dB

Product Details...

ADCFN10 – HPC

ADCFN10 – HPC
  • 10-channels of 16-bit ADC @ 150MHz
  • Impedance 50-ohm single-ended
  • Cross Talk 100dB@10MHz, 80dB@30MHz
  • S/N 82dB or over
  • LPF 400KHz-30MHz@-3dB

Product Details...

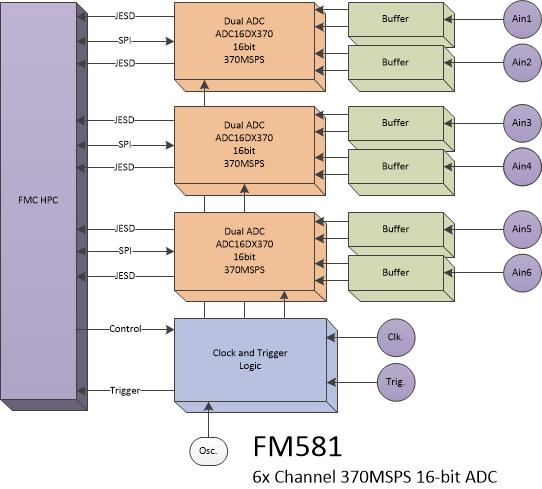

FM581 – HPC

FM581 – HPC
  • 3x Texas Instruments ASC16DX370 Dual ADCs
  • SNR: 69 dBFS with AIN = 231 MHz
  • SFDR: 85 dBFS with AIN = 231 MHz
  • Sampling resolution: 16 bit

Product Details...

FMC103 – LPC

FMC103 – LPC
  • Four Channel 12-bit 210 MSPS A/D conversion
  • Available as air cooled and conduction cooled
  • VITA 57.1-2010 compliant
  • Based on TI ADS62P28

Product Details...

FMC104

FMC104
  • Four Channel 14-bit 250 MSPS A/D conversion
  • Available as air cooled and conduction cooled
  • VITA 57.1-2010 compliant
  • Based on TI ADS62P49

Product Details...

FMC107

FMC107
  • Eight channel 12-bit 65 MSPS A/D conversion
  • Available as air cooled and conduction cooled
  • VITA 57.1-2010 compliant
  • Based on TI ADS62P28

Product Details...

FMC108

FMC108
  • Eight channel 14-bit 250MSPS A/D conversion
  • Available as air cooled and conduction cooled
  • VITA 57.1-2010 compliant
  • Based on TI ADS62P49

Product Details...

FMC112

FMC112
  • 12 channel 14-bit 125 Msps A/D conversion
  • Conduction cooled compatible
  • ANSI/VITA 57.1-2010 compliant
  • Based on LTC2175-14

Product Details...

FMC116

FMC116
  • 16 channel 14-bit 125 Msps A/D conversion
  • Conduction cooled compatible
  • ANSI/VITA 57.1-2010 compliant
  • Based on LTC2175-14

Product Details...

FMC122

FMC122
  • Dual – Single 8-Bit Channel Operation
  • 2-Channel 1.25 Gsps A/D conversion Mode
  • 1-channel 2.50 Gsps A/D conversion Mode (calibration package required, option –C48 to be added to P/N)
  • VITA 57.1-2010 compliant.
  • Conduction Cooled

Product Details...

FMC123

FMC123
FMC-HPC ADC Board Click for full size image. Four Channel 16-Bit A/D up to 1.00 Gsps The FMC123 provides four 16-bit A/D channels up to 1Gsps. The design is based on Texas Instruments' ADS54J60 Analog-to-Digital converter. The sample clock can be supplied externally through a coaxial connection or supplied by an internal clock source (optionally...

Product Details...

FMC125

FMC125
  • Quad – Dual – Single 8-Bit Channel Operation
  • VITA 57.1-2010 compliant.
  • Conduction Cooled
  • 1.25Gsps or 625Msps DDR LVDS outputs


Product Details...

FMC126

FMC126
  • Quad – Dual – Single 10-Bit Channel Operation
  • VITA 57.1-2010 compliant.
  • Conduction Cooled
  • 1.25Gsps DDR LVDS outputs

Product Details...

FMC140

FMC140
  • Four-channel, 16-bit A/D up to 370 MSPS
  • VITA 57.1-2010 compliant
  • JESD204B serial interface
  • Conduction-cooled - Standard Option

Product Details...

FMC161

FMC161
  • One ADC12D1800: Single channel 12-bit 3.6Gsps or dual channel at 1.8Gsps
  • VITA 57.1-2010 compliant
  • Conduction Cooled
  • Single ended AC-coupled analog signals

Product Details...

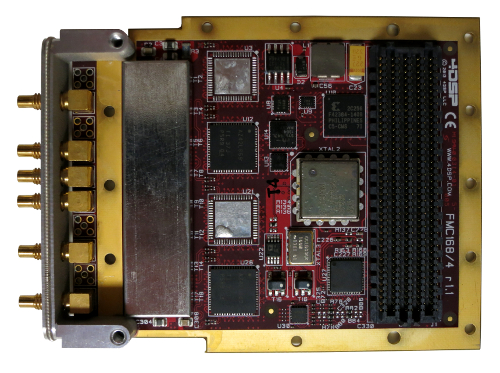

FMC164

FMC164
  • Four-channel 16-bit 250MSPS A/D conversion
  • Available as air cooled and conduction cooled
  • VITA 57.1-2010 compliant
  • Based on TI ADS42LB69

Product Details...

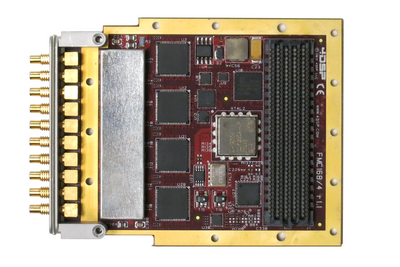

FMC168 – LPC

FMC168 – LPC
  • Eight-channel 16-bit 250MSPS A/D conversion
  • Available as air cooled and conduction cooled
  • VITA 57.1-2010 compliant
  • Based on TI ADS42LB69

Product Details...

NES-FMC4ADC

NES-FMC4ADC
  • HPC FMC
  • 4 Channel ADC
  • 14bit 100MSPS

Product Details...

]
