PC/104 Integrations (Clock, RF, Ethernet, GPS etc.)

Our PC/104 other integrations for other applications, such as RF, Ethernet, GPS etc.:

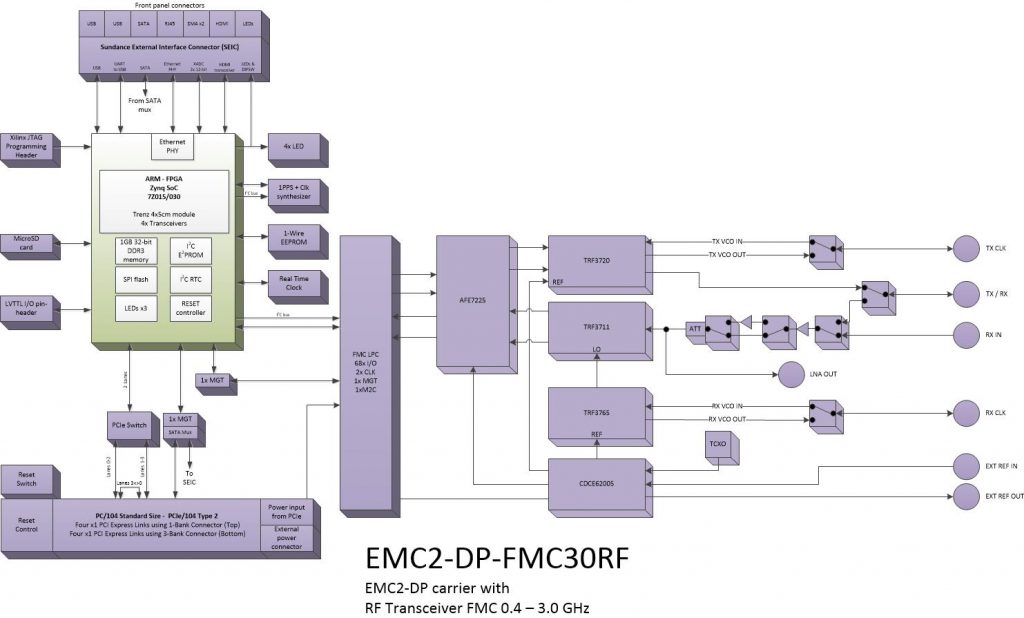

oi010 – RF module

oi010 – RF module
  • RF coverage from 400Mhz to 3.0GHz*
  • Complete transceiver signal chain solution for up to 60MHz* bandwidth
  • Dual DAC, IQ modulator for Tx
  • Dual ADC, IQ modulator with PGA, buffer and filters for Rx
  • PCIe/104 OneBank Carrier for Trenz SoC Modules


Product Details...

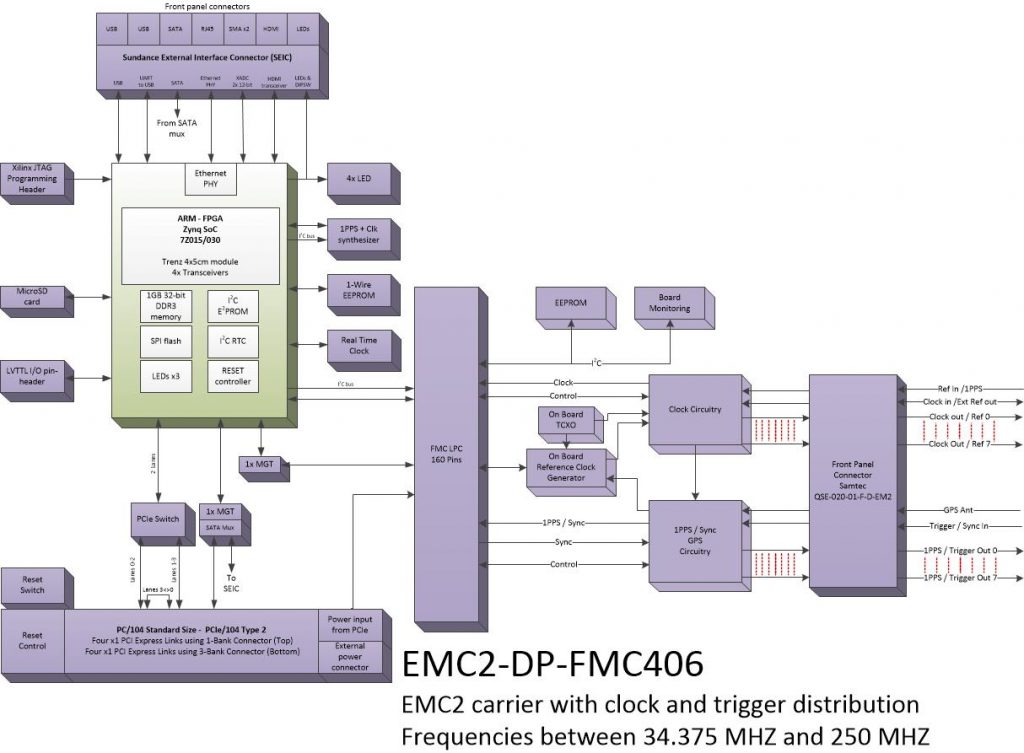

oi011 – Clock Board

oi011 – Clock Board

  • External clock input and onboard VCO
  • External reference input and on board reference (30.72MHz)
  • External 1PPS, Sync and Trigger inputs
  • Eight synchronized clock outputs (34.375MHz-250MHz)
  • Eight synchronized trigger or 1PPS outputs
  • Onboard GPS receiver for accurate data time stamping


Product Details...

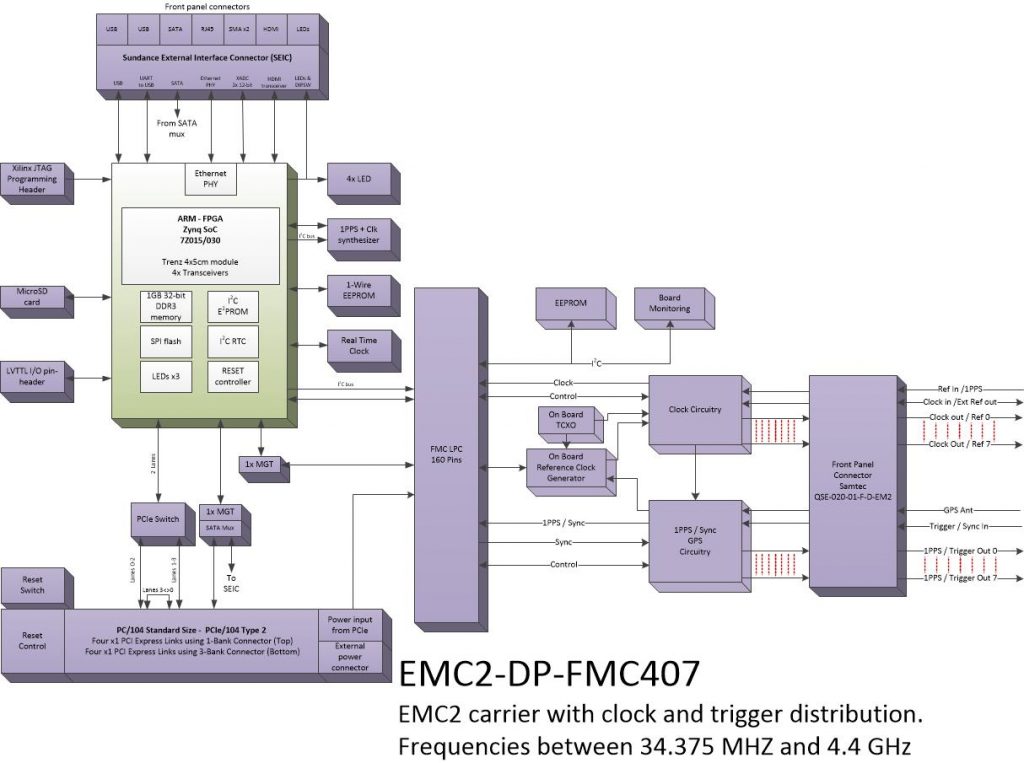

oi012 – High speed clock board

oi012 – High speed clock board

  • External clock input and onboard VCO
  • External reference input and onboard reference (30.72MHz)
  • External 1PPS, Sync, and Trigger inputs
  • Eight synchronized clock outputs (34.375MHz-4.4GHz)
  • Eight synchronized trigger or 1PPS outputs
  • Onboard GPS receiver for accurate data time stamping


Product Details...

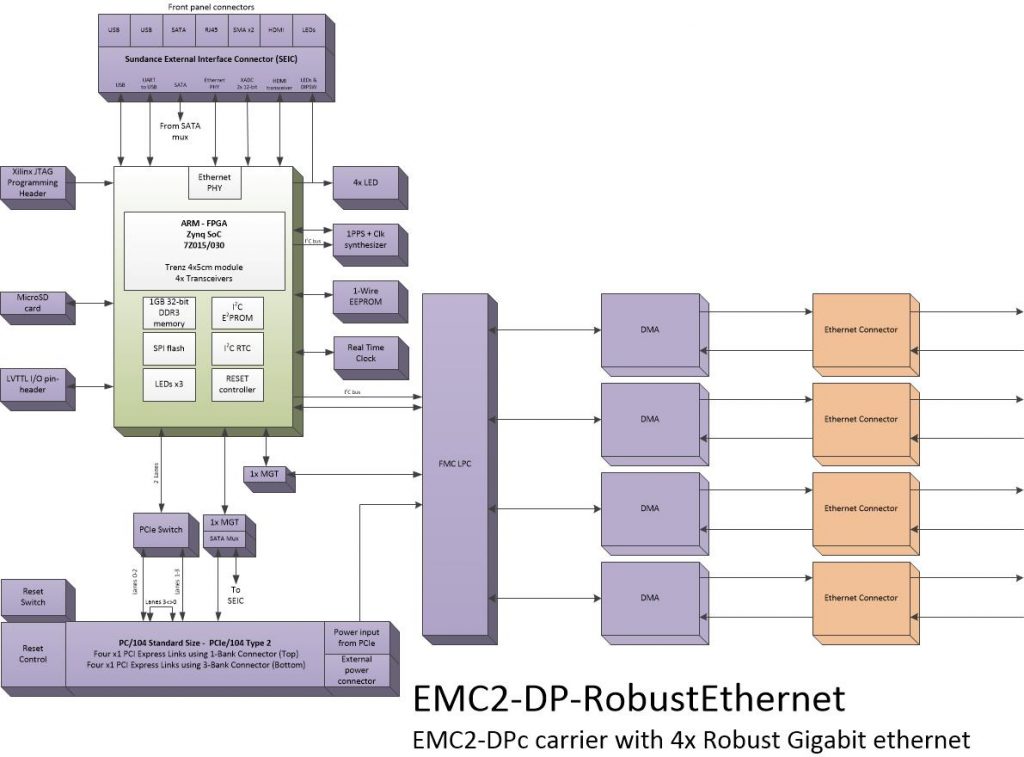

oi013 – 4 port Robust Ethernet

oi013 – 4 port Robust Ethernet
  • 4 x 10/100/1000Mbps Ethernet Ports
  • LPC FMC: Pin compatible with FMC carriers
  • 125MHz Oscillator for the MAC
  • PCIe/104 OneBank Carrier for Trenz SoC Modules
  • PCI Express Gen 2 compatible and integrate PCI Express switch
  • Infinite number of EMC²-DP can be stacked for large I/O solutions

Product Details...

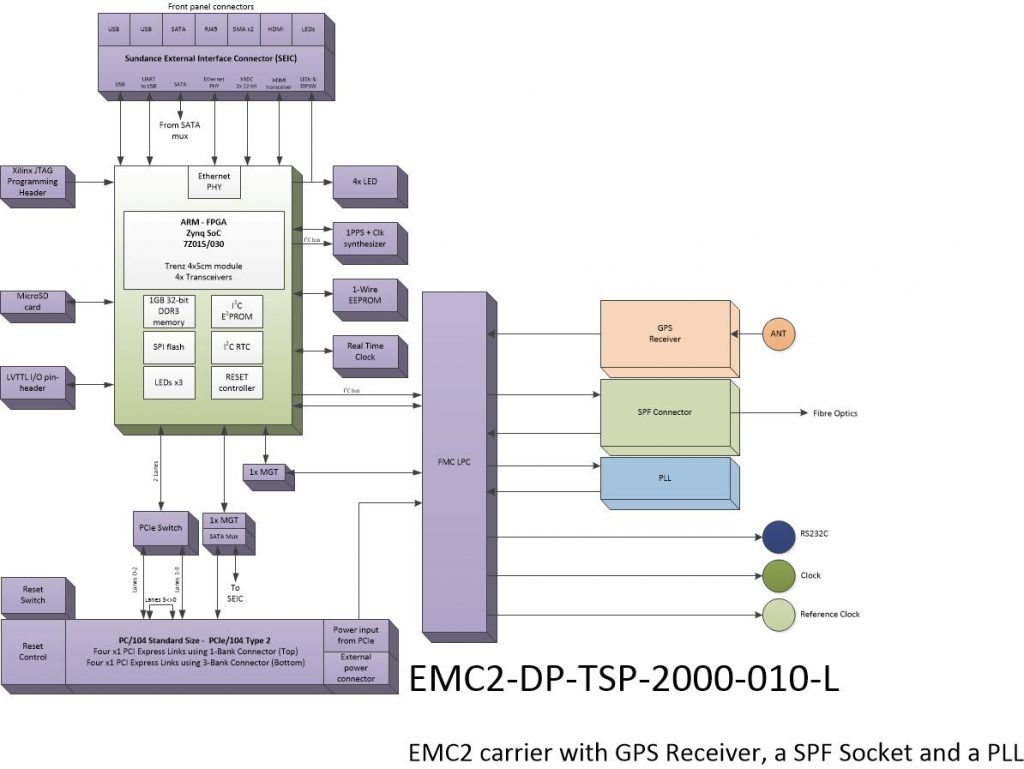

oi014 – GPS receiver

oi014 – GPS receiver
  • Primary station
  • GPS receiver
  • SFP x1
  • PLL
  • PCIe/104 OneBank Carrier for Trenz SoC Modules
  • PCI Express Gen 2 compatible and integrate PCI Express switch

Product Details...

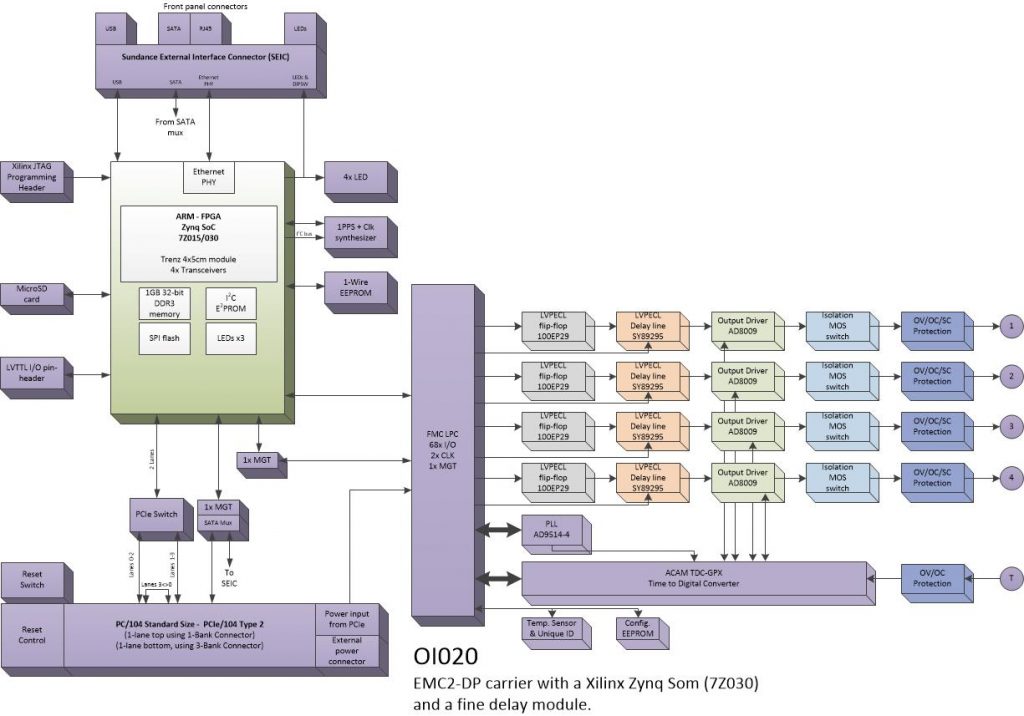

oi020 – Fine delay

oi020 – Fine delay
PCIe/104 OneBank Carrier for Trenz SoC Modules PCI Express Gen 2 compatible and integrate PCI Express switch Infinite number of EMC²-DP can be stacked for large I/O solutions TTL, outputs capable of driving a 50 Ohm load, > 2 V/ns slew rate TDC Chip: ACAM TDC-GPX multifunctional High-end Time-to-Digital Converter Timing: +/- 2.5 ppm on-board oscillator...

Product Details...
