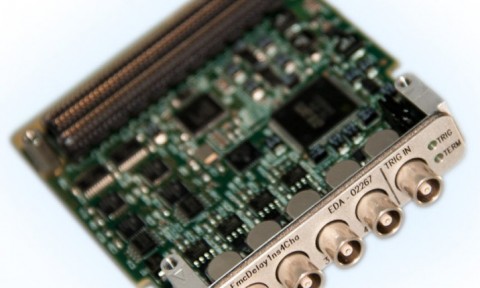

FMC DEL
- LEMO 00 connectors for all input/outputs.
- FMC mezzanine using a Low Pin Count (LPC) connector.
- TTL, outputs capable of driving a 50 Ohm load, > 2 V/ns slew rate
Category Archives: COTS Modules

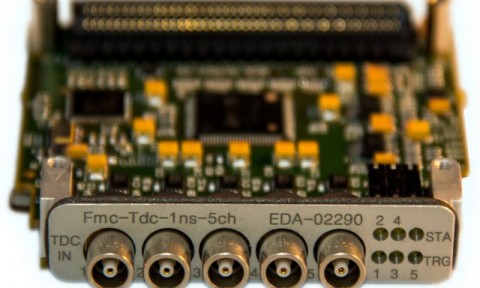

FMC TDC
- Time to Digital Converter – 1ns 5ch – Low-Pin-Count
- 5 inputs, TTL with software selectable 50 Ohm termination.
- LEMO 00 connectors for all inputs.
- External inputs need to be protected against +15V pulses with a pulse width of at least 10us@50Hz.
- Time tags apply to rising edges of inputs.

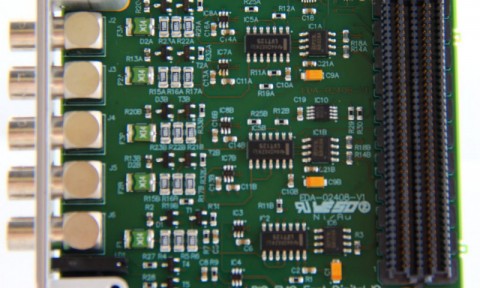

FMC DIO
- 5 input/output ports (Lemo 00 connectors)
- Output levels: LVTTL (+3.3 V over a 50-Ohm load).
- Input levels: Logic standard (Vih = [1-5]V)
- Output Rise/fall times: max. 2 ns

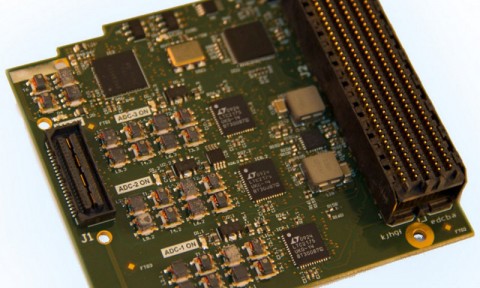

FMC-FADB
- FMC HPC Connector (high-pin count with 400 pin high-speed array connector)
- QSE Connector Compatible with Samtec EQRF
- 3x ADC Chips from Linear Technology: LTC2175-14

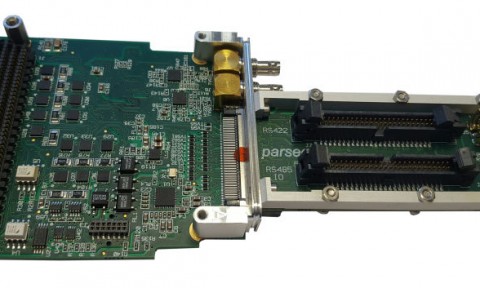

FM510
- SDI Video input & output (75 Ω)
- Composite (CVBS) Video input & output (75 Ω)
- Supported formats
- PAL B/D/G/H/I/M/N
- NTSC M
I/O Modules
FMC I/O Modules
TE0712
- Xilinx Artix-7 FPGA module (100T, 200T), supported by the free Xilinx Vivado WebPACK tool.
- 256 Mbit (32 Mbyte) Quad-SPI Flash memory (for configuration and operation)
- 4 MGTs (multi gigabit transceivers)

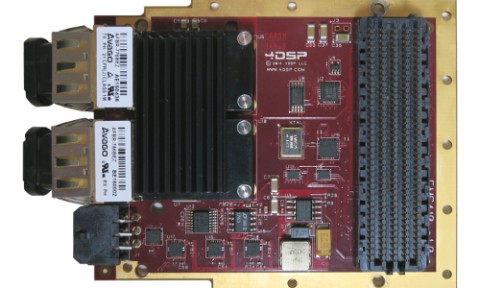

FMC410
- Ten independent transmit channels
- Ten independent receive channels
- High channel capacity: 6.25Gbps or 10Gbps per direction (TX/RX)
- High port density

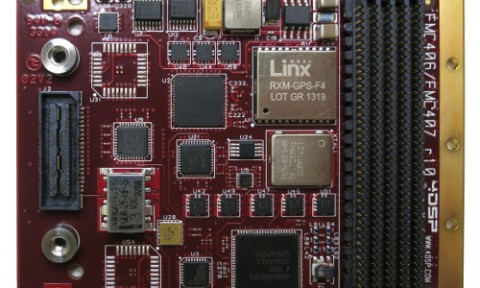

FMC406
- External clock input and onboard VCO
- External reference input and on board reference (30.72MHz)
- External 1PPS, Sync and Trigger inputs
- Eight synchronized clock outputs (34.375MHz-250MHz)

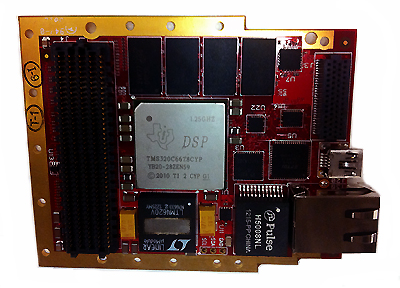

FMC667
- 1.25GHz, 8-core, TMS320C6678 DSP
- Fully conduction cooled compliant
- VITA 57.1-2010 compliant
- 1.8V VADJ operation only
